Running a Jupyter Server
Introduction
Jupyter notebook is very handy for fast-prototyping or quick Python code testing. In this guide, we will be using VS Code to create a Jupyter Server and run Jupyter notebook on Maxwell. Before starting please make sure you have installed the following:

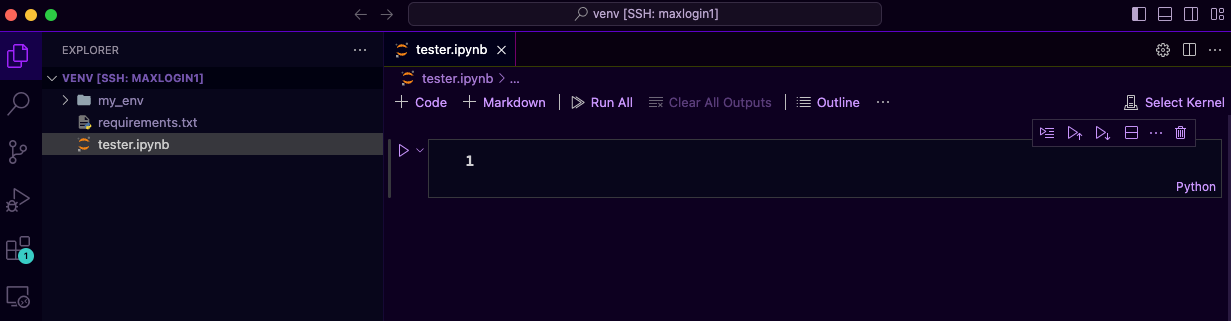

Every file with .ipynb
extension will be detected as a Jupyter notebook file, you can create a file and put a .ipynb
extension and it will become a Jupyter notebook

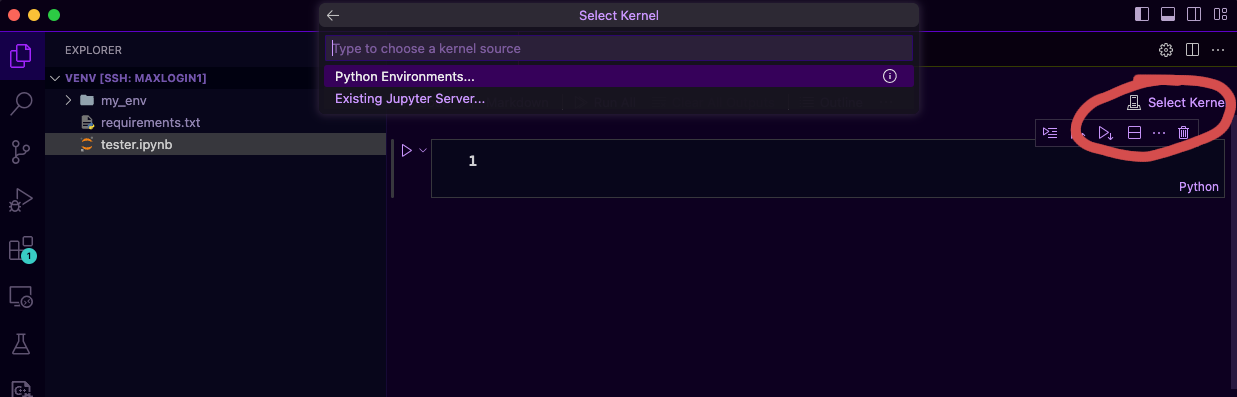

To start working with Jupyter notebook you will need to select a kernel
There are two options, you can use the readily available environments (Maxwell default conda environments, your conda environments or your pip environments if you're in the same directory with it). The problem with selecting this option is the fact that you will be using login node which is very slow and may fail because of you don't have enough memory to run your script. Most of the time we will opt for the second choice, to use the Existing Jupyter server.
Creating Jupyter server
To create a Jupyter server we need to submit a slurm job that handles the running of Jupyter server in the background for us
#!/bin/bash
#SBATCH --time=01:00:00
#SBATCH --cpus-per-task=8
#SBATCH --ntasks=1
#SBATCH --mem=64G
#SBATCH --job-name=jupyter-notebook
#SBATCH --output=jupyter-notebook.log
module load mamba
source ~/.bash_profile
source ~/.bashrc
mamba activate my_environment
jupyter notebook --no-browser --ip=0.0.0.0
Change #SBATCH
options according to your need, in my case I need 64 GB memory, with 8 CPUs per task and keep it running for the next 1 hour. If you're not sure with the #SBATCH
option or you want to add more option, you can refer to this. The next lines I'm loading mamba
, my bash_profile
and setup (The reason was if I remember it correctly because if I don't do it it will use the default base
environment that may cause clash with the package dependencies installed in my environment, so yes it's better to include them). The lines that follow is to activate my environment (NOTE: You must have ipykernel
package installed in your environment otherwise the server creation will fail) and to create a Jupyter notebook server.
Once you submit the job, the log will appear (in my case jupyter-notebook.log

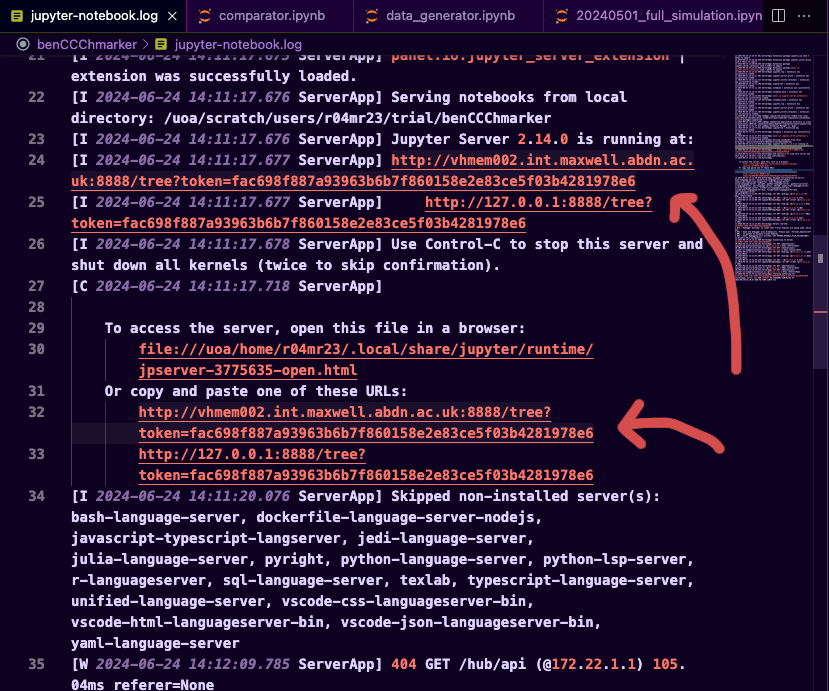

) wait for around 2 or 3 minutes till the log file is filled with Jupyter logs (Either server is fully running or it's failed). Open the jupyter-notebook.log
, if it's successful you will see the url to the server.
Copy the url, the one that doesn't start with the http://127.0.0.1......
(in my case it's http://vhmem002.int.maxwell.abdn.ac.uk:8888/tree?token=fac698f887a93963b6b7f860158e2e83ce5f03b4281978e6
)

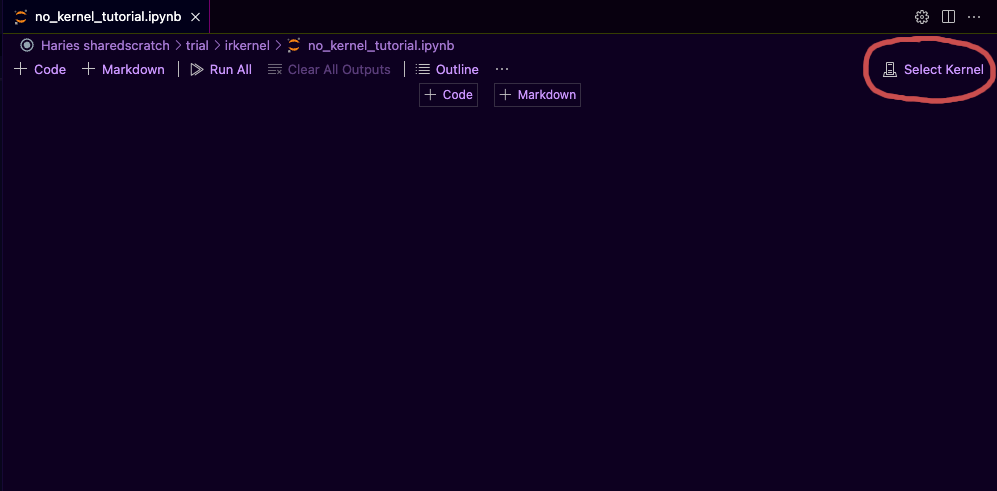

Go back to your Jupyter notebook, click Select Kernel
and select Existing Jupyter Server...
, paste the url, press enter and when prompted with environment selection, select your environment (There is only one of it).
Running R code on Jupyter Notebook
To run R code on Jupyter Notebook you need to have the following library installed in the environment that you're using
mamba install r-irkernel r-languageserver

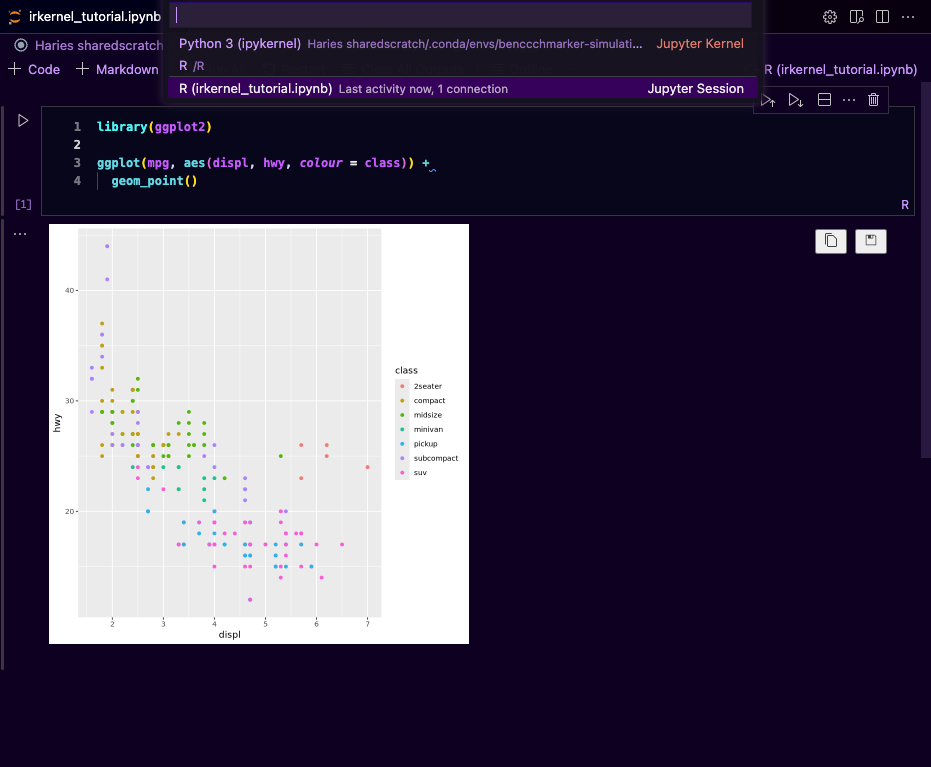

If you have them installed, you can follow the same steps you did above but now instead of Python 3
you need to select R
when selecting the kernel
